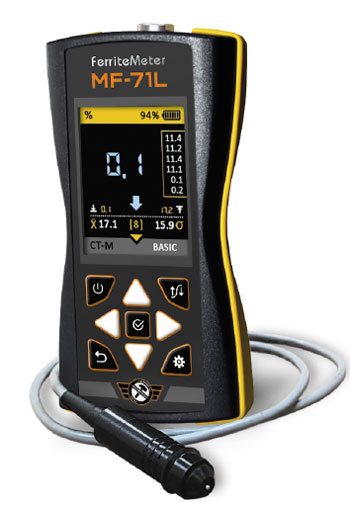

Ferritemeter - MF - 71L

We are Manufacturer, Supplier, Distributor, Trader, Exporter, Importer, Maintenance, AMC Services Provider of Ferritemeter - MF - 71L and our setup is situated in Pune, Maharashtra, India.


Model - Ferritemeter - MF - 71L

he universal tool for local measuring the ferrite content in the metal of welds, deposited rust-inhibiting coatings and in the base metal of workpieces, parts and finished products made of austenitic and austenitic-ferritic stainless Cr-Ni steels.

Non-destructive testing of products made of metals and alloys
• Percentage (%) and ferritic number (FN) scales in all measurement range
• Measurement of the ferrite content according to ISO 8249-2000, DIN EN ISO 17655, ANSI/AWS A4.2M/A4.2 standards
• Suitable for laboratory and workshop conditions of nuclear and chemical engineering, shipbuilding and other industries for quality control of stainless steels weldings
• Wide range of transducers for different applications
i.e. Cladding thickness measurement

• Ergonomic housing made of ABS plastic equipped with shockproof rubber pad
• IP54 dust- and moisture-proof housing
• Display of the minimum, maximum and arithmetic mean values for set of measurements
• Optional remote transducer for cladding for ultra-high measurement locality
• Non-volatile memory
• USB interface

Discrete mode
Discrete measurement of ferrite content with displaying of auxiliary information: min/max value, average value, statistics/history.
Continious mode
Scanning of the test object with indication of the current value of coating thickness as well as displaying the min/ max value.

Technical Specifications
Characteristic Value
Ferrite content measurement range, % 0,5...20 / 0,5...60 / 0.5....80*
FN measurement range 0,5...100*
Basic error less than 3%
Power supply 2700 mAh batteries (replaceable) or AA batteries
Time of continuous operation, h 8
Display color TFT LCD 320X240
Memory capacity 100 pages x 100 measurements per page
Weight, kg 0,3
Electronic unit dimensions, mm 36 x 78 x 159
MF2-01 transducer dimensions MF0.7-01 transducer dimensions d16x60 d10x63
Operating temperature range, °C -10...+40
Max magnetization depth (locality) 5,5
Transducer type magnetic induction
