We are Manufacturer, Supplier, Distributor, Trader, Exporter, Importer, Maintenance, AMC Services Provider of Portable Microscope and our setup is situated in Pune, Maharashtra, India.
Leading Distributor / Channel Partner of Portable Microscope from Pune.

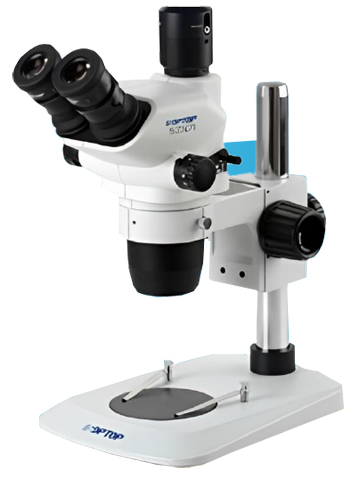

Powerful imaging capabilities at an economical price with excellent specifications and ergonomics. Featuring a zoom magnification of 6.7x to 45x and a long working distance of 100mm.Fully coated prism produces brighter images with higher contrast, and the anti-mold design allows the microscope to be used in environments where the temperature and humidity are high. These instruments are perfect for zoological studies and insectaries. The provision has been given to record pictures of the samples using trinocular head. You may wish to use digital camera/phone camera available with you we can't guarantee the quality of the pics or may want to order an additional camera purchase.
Features :
- A 45oinclined trinocular head comprised zoom optical system stereo microscope
- WF10x/22mm eyepiece and 100 mm of working distance
- Optional auxiliary lens 0.5X with 0.5X C-mount.
- Inter pupillary distance adjustable between 54 mm to 76 mm.
- 6.7 to 45X Total Magnification
- B3W LED bulb for incident and transmitted illumination
- Highly-flexible and stable with high quality performance
Specifications
| Model | MATRIX-100M |
| Optical system | Parallel zoom optical system |
| Eyepiece | WF10x/22 mm |
| Interpupillary distance | 54 to 76 mm |
| Objective | Zoom objective: 0.67x to 4.5x |
| Field of View | close to 40 mm |
| Zoom magnification | 6.7x to 45x |
| C-Mount | 0.5X |
| Zoom ratio | 1:6.7 |
| Working distance | 100 mm |
| Illumination | Incident and Transmitted LED illumination |
| Stand Type | Pillar style dovetail stand with clips |
| Camera | 3 MP USB CAMERA Camera Resolution - 2048 X 1536, 1024 X 768,1280 X 1024, 800 X 600, 640 X 480 Camera FOV- 45 mm |
| Power supply | 220/110 V, 50/60 Hz |
| Packaging dimension (W×D×H) | 430×430×510 mm |
| Gross weight | Approx. 9 kg |
Report
- Reports in Excel or PDF format
- Report will have the measurement data as well as the image with drawings
- Component level summary report, with images & measurements of each weld spots
Applications
It finds best well suited for biology, medicine, scientific research, modern electronics industry and other industrial uses. Perform dissections, observe live objects, record the data of species, identify species, taxonomy, work for metallurgy, use it for phone repair, or watch-making, circuit board manufacture or inspection, and fracture surfaces across various manufacturing industries, quality control, forensic science etc. Uses are endless and depends on the customer intended to purchase
Measurements :
- Supports all Weld parameters like depth/penetration, leg lengths, throat lengths, root penetration, angle, % penetration and all 2D measurements
- Can find mid-points, perpendiculars to lines, angle between lines
- User defined parameters
- User defined templates for different types of components, with user defined parameters, expected values and tolerances
- User defined Rules/ Criteria for PASS/FAIL
- Automatic profile measurements
- Ability to create a master template for measurements for each type of component
- Ability to set expected value as well as tolerances at individual work level or at a master template level
- Automatic edge detection
- Component level reporting
- Date and time on image
- Result and parameter name on image
- Can add comments to the image
- Integrated Help

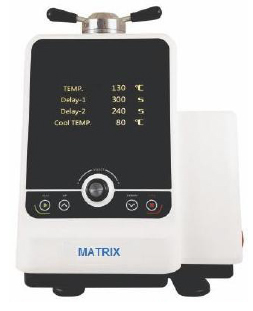

| Model | AM-30 |
| Mould Diameter | 30 mm |
| Heating temperature range | 100-200° C |
| Holding Time Range | 0-999 sec |
| Cooling Method | Water Cooling |
| Pressure | Automatically |
| Mould Preparation Capacity | Single Mould |
| Electric Power | 650W, 220V, 50Hz |
| Dimensional Weight | 350 X 450 X 470 mm, 48kg |
| Model | MM-30 | MM-45 |
| Mould Diameter | 30 mm | 45 mm |
| Temperature Adjusting Range | 90-200oC | |
| Cooling Method | Air Cooling Fan | |
| Pressure | Manually by hand wheel | |
| Mould Preparation Capacity | Single Mould | |
| Electric Power | 650W, 220V, 50Hz | |
| Dimension / Net Weight | 440 X 253 X 310 mm, 32kg | |
| Model | MPM-2D |
| Disc Diameter | 203 mm |
| Grinding/Polishing Speed | 50-1000 RPM |
| Power | 550W, 220 Volt |
| Head Rotating Speed | 50 RPM |
| Sample Force | 0-40 N |
| Sample Capacity | 1-3 Nos. |
| Dimension/Net Weight | 700 X 600 X 278 mm, 45kg |
| Model | MPM-2D(V) |
| Disc Diameter | 203 mm |
| Disc Diameter (Optional) | 10 Inch, 12 Inch |
| Grinding/Polishing Speed | 50-1000 RPM |
| Sample Force | 0.5 HP High Torque Motor |
| Power | 550W, 220 Volts |
| Dimension/Net Weight | 800 X 600 X 278 mm, 47kg |
MATRIX metallographic sample cutting machine is widely used to cut the various types of metal materials. These machines are equipped with cooling system which clear up the heat produced during sample cutting and avoid deformation of metal structure because of heating influence.
| Model | ACM-100X |
| Display | LCD Display with high resolution backlight |
| Cutting Capacity | 100mm |
| Cutting Method | Manual & Automatic |
| Way of infeed | Arbitrary adjustment |
| Infeed distance | Arbitrary Set, Adjustment and fixture position |
| Reset Mode | Automatic |
| Cooling System | Water Cooling with 3 ways |
| Effective workpiece Length | 200 mm |
| Spindle Speed | 2800 RPM |
| Coolent Tank Capacity | 65 liters |
| Motor | 350mm X 2mm X 32mm |
| Dimension / Net Weight | 4 HP (3 kw), 380V, 50Hz |
| 1650 X 680 X 740 mm, 150kg |
| Model | ACM - 60 | ACM - 80 |
| Front Cover | Fully Enclosed | |
| Cutting Capacity | 60 mm | 80 mm |
| Cutting Method | Manual | |
| Cooling System | Water Cooling | |
| Spindle Speed | 2800 RPM | |
| Coolent Tank Capacity | 50 liters | |
| Cutting wheel dimension | 250mm X 2mm X 32mm | |
| Motor | 2.9 HP (2.2 kw), 380V, 50Hz | |
| Dimension / Net Weight | 700 X 650 X 560 mm, 117kg | |
| Model | MCM - 35 | MCM - 50 |
| Cutting Capacity | 35 mm | 50 mm |
| Cutting Method | Manual | |
| Cooling System | Water Cooling | |
| Spindle Speed | 2800 RPM | |
| Coolent Tank Capacity | 50 liters | |
| Cutting wheel dimension | 250mm X 2mm X 32mm | |
| Motor | 1.4 HP (1.1 kw), 380V, 50Hz | 2.9 HP (2.2 kw), 380V, 50Hz |
| Cutting Capacity | 30 mm | 55 mm |
| Net Weight | 60 kg | 80 kg |
