We are Manufacturer, Supplier, Distributor, Trader, Exporter, Importer, Maintenance, AMC Services Provider of Portable Microscope and our setup is situated in Pune, Maharashtra, India.
Leading Distributor / Channel Partner of Portable Microscope from Pune.
• Carbon analysis directly in air, No Argon gas required
• Fastest in world with test result in 1 second
AREAS OF USE :
• Input / output control of metals, alloys
• Sorting scrap
• Spectral analysis in laboratory studies
• Positive metal identification
• Quality testing of metal

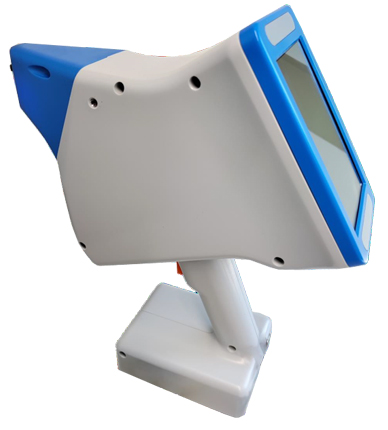

The LIS-02 Metal Analyzer is designed for operational input inspection of rolled metal products, determination of steel grades, scrap of non-ferrous and ferrous metals and alloys. The spectrometer provides high speed in determining chemical elements: C, Si, Mn, Cr, Ni, Fe, Mg, Al, V, Cu, Zn, Sn, Mo, Ti, W, Nb, Pd, Ag, Cd, Pt, Au and others.
FEATURES :
• Carbon analysis. The LIS-02 allows to measure carbon concentration in steels without using argon, directly in the air.
• Speed. High speed analysis, result in 1 sec.
• Accuracy. Provides unsurpassed resolution of 0.01 nm over the entire measurement range.
• Portability. Small dimensions and weight comparable to a handheld power tool.
• Reliable. Unlimited operating life, compared to X-ray fluorescence spectrometers (XRF).
• Built-in grade library. Based on the results of the analysis, the steel or alloy grade is displayed on the screen.
• CE Value. Measurement of carbon equivalent values
• Camera. High resolution camera to capture the location of analysis.
TECHNICAL CHARACTERISTICS
| Source of radiation | Pulsed DPSS Laser1064 nm |
| Measurement point size | 50 microns |
| Measurement duration | 1.0 sec |
| Laser emitter safety class | 3b |
| Working spectral range | 177-380 nm |
| Display | 5" color touch screen display |
| Weight | 2.2 Kg ( Including Battery ) |
| Memory | 32 GB |
| Date Transfer | WIFI and Bluetooth |
| Language | English, German and Russian |
| Security | Password Protection |
| Duration of autonomous work | More than 200 dimensions |
| Power | Replaceable Li-ion battery |
| Operating conditions : ambient air temperature | From -15 to +44 oะก |
DIFFERENT BASE AND ALLOY ELEMENTS
| The basis | Elements |
| Fe | C, Si, Mn, Cr, Ni, V, Cu, Ti, Mo, Co, Al, Nb, W, Mg, Zn |
| Al | Si, Zn, Mn, Mg, Fe, Cu, Ni, Be, Ti, Cr, Cd, Sb, V |
| Cu | Si, Zn, Mn, Al, Be, Sb, Ni, Sn, Pb, Fe, Cr |
| Ni | Al, Si, Ti, V, Cr, Mn, Fe, Co, Cu, Nb, Mo, W, C |
| Ti | Mo, V, Al, Fe, Cr, Zr, Mn, Sn, Ni, Nb |
| Zn | Al, Cu, Fe, Sb, Sn, Mg, Pb |
OTHER INCLUSIONS
- Possibility to adjust the device operation parameters to the selected task
- Free built-in client software
- 12 months warranty
- LisMobile software Free application for Android smartphones.
DELIVERY SE
- Portable laser spectrometer
- Thermoprinter
- Batteries
- Transport case
- Battery Charger
- Reference sample
