• Precision optics on a DIN A5 sheet .
• Portable testing .
• Checking printing rollers .
• Material analysis

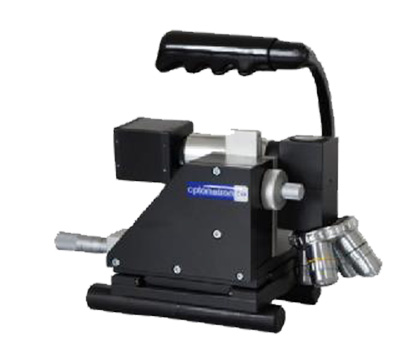

This ultra-compact unit (180x180x160 mm) includes high quality optics and coaxial illumination. The 4-way lens-capstan holds 4x, 10x, 20x and 40x object lenses. The optical system is mounted on a cross-table and can be positioned over a 10x10 mm area. Height is adjusted by a combined coarse/fine positioning drive.
The unit is mounted on twin guides, permitting reliable positioning on rollers with diameters 200mm and above. For metallurgical tests, the roller supports can be swapped for magnetic feet. The system is equipped with a highresolution Notebook-compatible USB digital camera. When used with a 15" monitor, magnifications of up to 2520x are possible. The VIS 6.4 software is optimised for rapid documentation and precise 2D measurement, to determine distances, diameters, angles, areas etc.
All Inclusive :
• Optical system with 4x, 10x, 20x and 40x object lenses
• Roll support guides
• Coaxial LED illumination, adjustable brightness
• USB digital camera, model DFC-42
• VIS 6.4 image analysis software and measurement module
